Home > LED Street Lighting >

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Product Categories

Shenzhen Leyond Lighting Co.,Ltd.

Contact Now

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Name: IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link
Brand: LEYOND
Price: 45 USD

Quality IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link for sale

Brand Name : LEYOND

Model Number : LY-ST10050-XX

Certification : TUV, CE, RoHS, CB, ENEC, GS, SAA, ETL, FCC, UL

Place of Origin : Guangdong, China

MOQ : 20 pcs

Price : 45$-55$

Payment Terms : T/T, Western Union, Paypal, L/C, MoneyGram

Supply Ability : 30000 pcs/month

Delivery Time : 5-7 days for samples, 7-10 days for bulk orer

Packaging Details : Standard Export Packing, 4 inner cartons load into 1 outer carton

Power : 20w 30w 40w 50w 60w 70w 80w 90w 100w 120w 130w 150w

LED Chip : Lumileds 5050

LED Driver : Meanwell HLG-050

IP Rating : IP65

CCT : 2700-6500K

Warranty : 5 Years

Beam angle : 150X65

Package : 75cm×40cm×23cm (2 PCS )

GW : 2.6kg

Luminous flux : 8000 lm

Dimmable : Available

CRI : >70

Pole Diameter : 50/60mm

Housing Material : Diecasting Aluminium

Housing color : Black / Gray / Customize

Lighting solution : Lighting And Circuitry Design, DIALux Evo Layout

Working temperature : -40-55 Degree Celsius

Photocell : Extendable

Contact Now

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Features:

Absolutely unique mold,make your lighting special and fantastic.
Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
Anti-glare and uniform light level to avoid any visual discomfort.
high quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

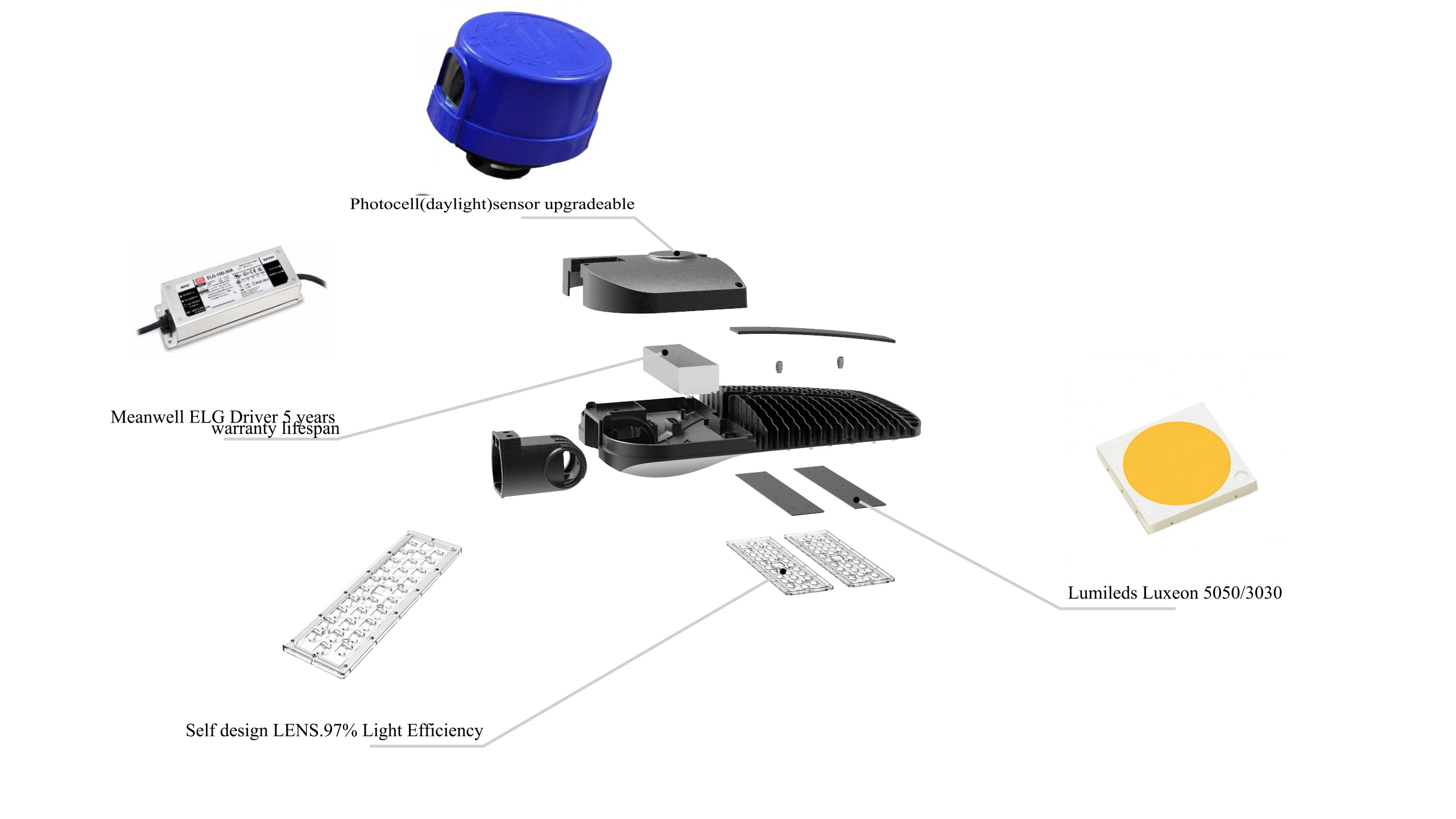

Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
Low energy consumption,matching high efficiency constant-current driver, 60% energy saving;with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
Green environmental protection, no UV light and infrared radiation, no mercury pollution.
Nice appearance and non-fouling properties, Protection class IP65.
Work without strobe, fast transient response；A wide range of working voltage.

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Product Description:

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Dimension:

Application cases:

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Installation instructions:

1. Switch off the power supply

2. Through the AC electrucal cable in the lamp pole

3. Clear the Brown / Blue / Green Yellow pole

4. Electrical wiring connection

5. Tight the screws

6. Switch ON

Oprations:

• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height

(Kindly reminder: All installation steps must handl by professional electrician)

Specification:

Par NO Parameter	LY-ST10050PW	LY- ST10050WW	LY- ST10050NW
Inptut voltage	AC100V～240V 50/60HZ / DC12-24V
Sysem consumption(W)	50	50	50
Luminous flux(lm)	8255	8200	8250
Chip Brand	Lumileds 5050	Lumileds 5050	Lumileds 5050
Beam Angle	150*65 DEG	150*65 DEG	150*65 DEG
CRI	＞70
Color Temperature	Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver	MEAN WELL HLG-60H
Luminous efficiency(lm/w)	＞165
Lifespan(hrs)	＞50000
IP Rating	IP65
Dimmable	YES＆NO	YES＆NO	YES＆NO
Size(mm)	410x200x90	410x200x90	410x200x90
Net Weigh(kg)	2.8	2.8	2.8
Package Size(mm)	465255145	465255145	465255145
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	3.3	3.3	3.3

Distribution Curve:

Applications:

- Urban road

- Secondary road

- Rural road

- High way

- Parking lot

- Park

- Sea shore

- Landscape

Package info:

Inner box Size: 465mm×255mm×145mm

Outer box Size: 580mm×485mm×310mm

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Actual pictures:

Related hot selling products:

1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w

IP65 Outdoor 30w 40w 50w 60w LED Street Lighting For Urban Road Link

Mr. Pure Zhao (Sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web: www.leyond.com.cn
Email: sales15@leyond.com.cn

Mobile/whatsapp: 0086 18675501972
Wechat: 0086 18675501972

FAQ:

- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than

- Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

- How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

- How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

- Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

- How to deal with the faulty?
